Pure water has a maximum speed at which vaporization Boiling state. Under normal conditions, about 100 ℃ when the water began to Boiling. And in vacuum conditions, due to the system of water vapor partial pressure of water vapor partial pressure far below the surface of the material, the boiling point of water is less than 100 ℃. For example: the surface down to -0.07MPa, water starts at 70 ℃ Boiling. So, although at a lower operating temperature of the dryer is still a large drying capacity.
Applications for drying heat sensitive materials in pharmaceutical, chemical, food, electronics, medicine and other industries.
Square vacuum Dryer Features ※ can get a higher rate of drying at lower temperatures, the heat of the full.
※ suitable for low-temperature drying, drying heat-sensitive materials, the fear of an oxide material drying.
※ Drying can contain solvents and solvent to be recovered materials.
※ can be disinfected before drying process, drying process without any impurities mixed.
※ This dryer is a static vacuum dryer, so the shape of the dried material will not be damaged.
※ This dryer is a batch production equipment, ready to adjust the process.
※ inside the top of the arch, can effectively avoid the anti-condensate drip phenomenon.
※ four-point-one vacuum pump structure to ensure uniformity of dried material.
Technical Specifications
P/S | FZG-5 | FZG-10 | FZG-15 | FZG-20 |
Oven internal dimensionsmm | 1150×850×1210 | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 |
Oven Outer dimensions mm | 1320×1270×1780 | 1924×1720×1513 | 1513×1924×2060 | 1924×2500×1513 |
Drying rack layer | 6 | 5 | 8 | 12 |
Interlayer distance mm | 122 | 122 | 122 | 122 |

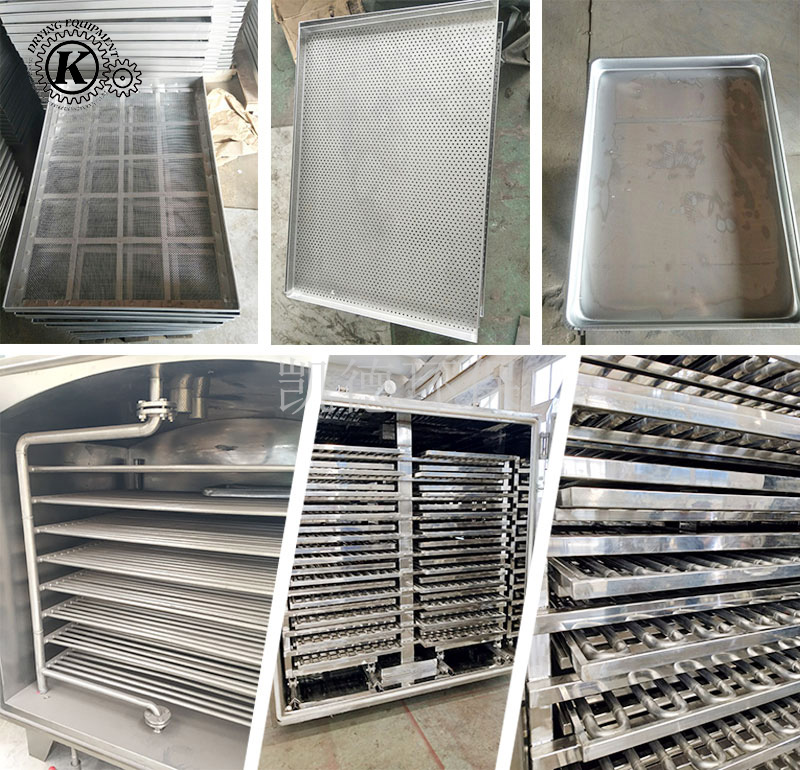

Baking tray size mm | 460×640×45 | 460×640×45 | 640×460×45 | 640×460×45 |
Number of baking tray | 12 | 20 | 32 | 48 |
Mpa pressure within the drying rack tube |
≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
Drying rack temperature ℃ | 35~150 | 35~150 | 35~150 | 35~150 |
Box load vacuum degree Mpa | -0.1 | -0.1 | -0.1 | -0.1 |
In -0.1Mpa, heating temperature of 110 ℃, the water vaporization rate Kg / m2h | 7.2 | 7.2 | 7.2 | 7.2 |
Weight kg oven | 1100 | 1400 | 2100 | 3200 |
