Principle
Material powder particles in the material container (fluidized bed) was boiling in a fluidized state by the heated air is preheated and mixed after purification, the binder solution sprayed into the spray, so some particles to contain a binder pellets, since the hot air drying of materials continue to make pellets in the water evaporates, the adhesive sets, this process is repeated continuously, form an ideal, uniform microporous spherical particles.

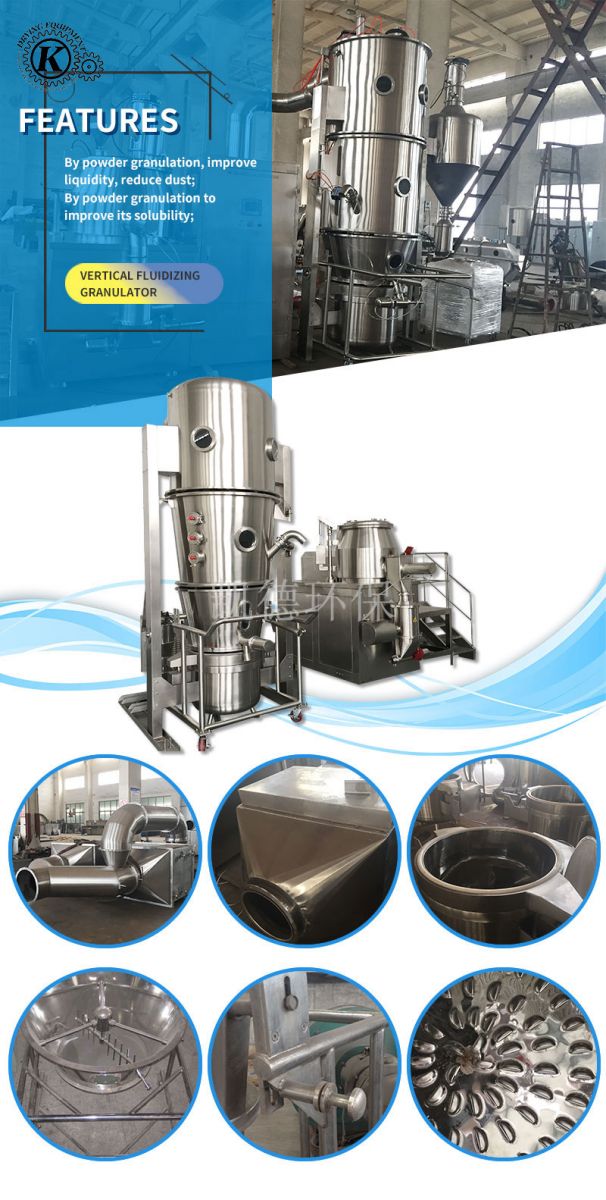

Feature
※By powder granulation, improve liquidity, reduce dust;
※By powder granulation to improve its solubility;
※Mixing, granulating, drying can be completed in one step granulation machine;
※Made of antistatic filter cloth, equipment operation safety;
※Setting the pressure relief hole event of an explosion, equipment personnel from harm;
※Equipment no dead ends, lighter, faster loading and unloading, rinse, to meet the GMP standard.
application
※Granulated pharmaceutical industry: tablet granule, granules, capsules, granules.
※Granulated food industry: cocoa, coffee, milk powder, granule juice, spices and the like.
※Oher industries granulation: pesticides, feed, fertilizer, pigment, dyestuff and so on.
※Powdered or granular drying wet materials.
※Coating: granule, pill protection layer, color preparation, sustained-release, film, and other enteric coating.
Technical Specifications
project | unit | Type | |||||||||
3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
Material container | capacity | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
diameter | ㎜ | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
Production capacity | Least | ㎏ | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
maximum | ㎏ | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
Fan | Wind | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
Wind pressure | ㎜H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
Steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
Compressed air Consumption |
m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 |
Weight | kg | 500 | 700 | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2000 | |||
steam pressure | Mpa | 0.3~0.6 | |||||||||||
temperature | ℃ | Water temperature can be adjusted within the range of -120 ℃ | |||||||||||
作业时间 | min | With dependent material properties45~90 | |||||||||||
Material yield | % | ≥99 | |||||||||||
噪声 | dB(A) | Fan and host isolation installation, noise≤75dB(A) | |||||||||||
Master shape size(L×W×H) |
m | 1.0×0.6 ×2.1 |
1.2×0.7 ×2.1 |
1.25×0.9 ×2.5 |
1.6×1.1 ×2.5 |
1.85×1.4 ×3 |
2.2×1.65 ×3.3 |
2.34×1.7 ×3.8 |
2.8×2.0 ×4.0 |
3×2.25 ×4.4 |
