Principle

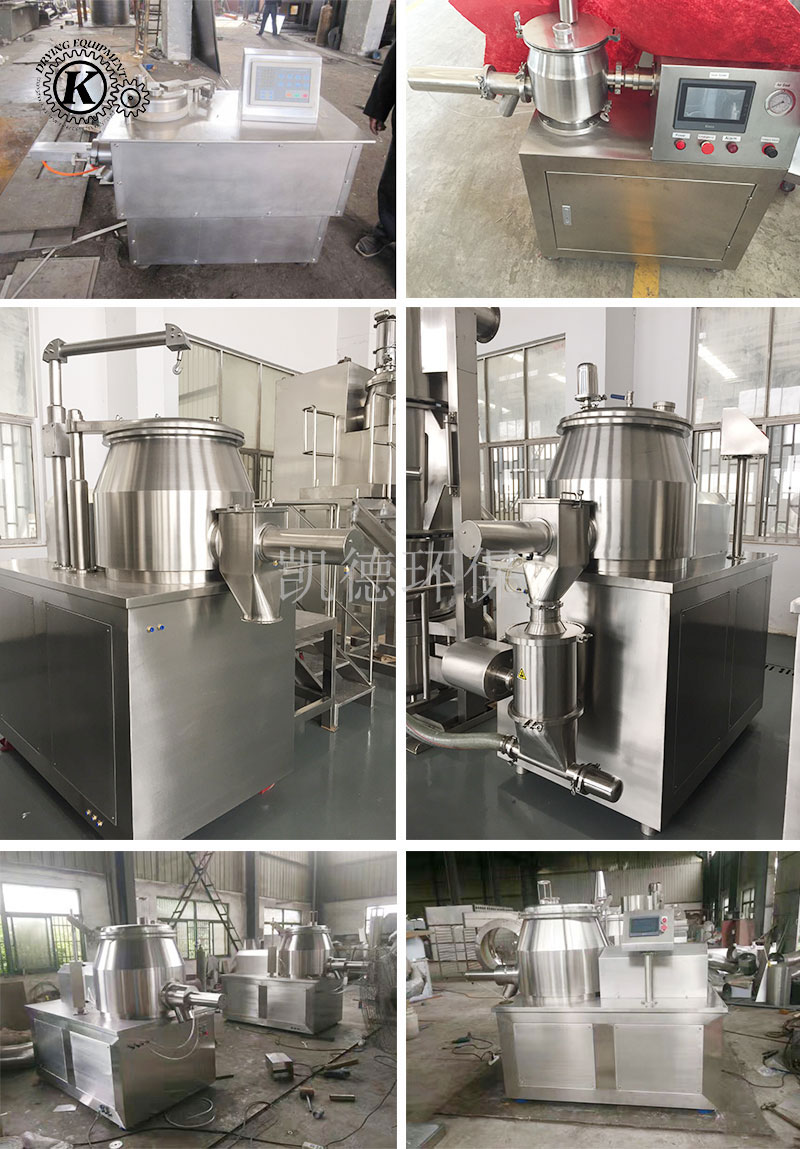

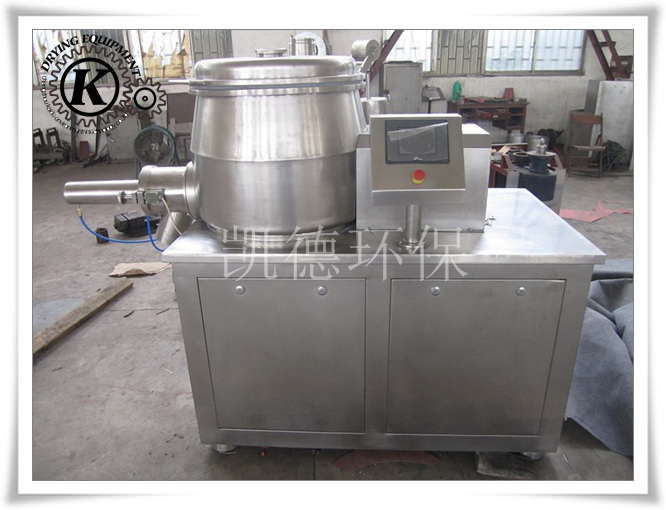

The pelletizing machine is the latest developed a new generation of wet mixing granulator, it is at home and abroad on the basis of the existing pellet mill uses a lot of the latest technology, reasonable GHL machine structure, easy to use, fully functional, fully embodies the perfect combination of technology and equipment. Powder material with a binder in a cylindrical container and mixed thoroughly by the bottom step mixing paddle into moist soft material and then cut by the side of the high-speed smash paddle uniformly wet granules.
Feature
※The machine adopts horizontal cylinder structure, reasonable structure.
※Inflatable seal the drive shaft, cleaning can be switched to water.
※Fluidized bed granulation, into spherical particles, good liquidity.
※25% less than conventional technology adhesives, drying time is shortened.
※Each batch was dried for 2 minutes, granulation 1-4 minutes, 4-5 times to improve efficiency than the traditional process.
※Completed within the same closed container, dry - wet mixing - granulating process down, meet the GMP standard.
※The whole operation has strict security measures.
Technical Specifications
Type | A | B | C×D | E | F |
50 | 320 | 950 | 1250×800 | 970 | 1650 |
150 | 420 | 1000 | 1350×800 | 1050 | 1750 |
200 | 500 | 1100 | 1650×940 | 1450 | 2050 |
250 | 500 | 1160 | 1650×940 | 1400 | 2260 |
300 | 550 | 1200 | 1700×1000 | 1400 | 2310 |
400 | 670 | 1300 | 1860×1100 | 1550 | 2410 |
600 | 750 | 1500 | 2000×1230 | 1750 | 1610 |
name | model | ||||||
50 | 150 | 200 | 250 | 300 | 400 | 600 | |
50 | 150 | 200 | 250 | 300 | 400 | 600 | |
Yield(kg) | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
Mixing speed(r.p.m) | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
Hybrid power(kw) | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
Cutting speed(r.p.m) | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
Cutting power(kw) | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
Compressed air consumption(m3/min) | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
