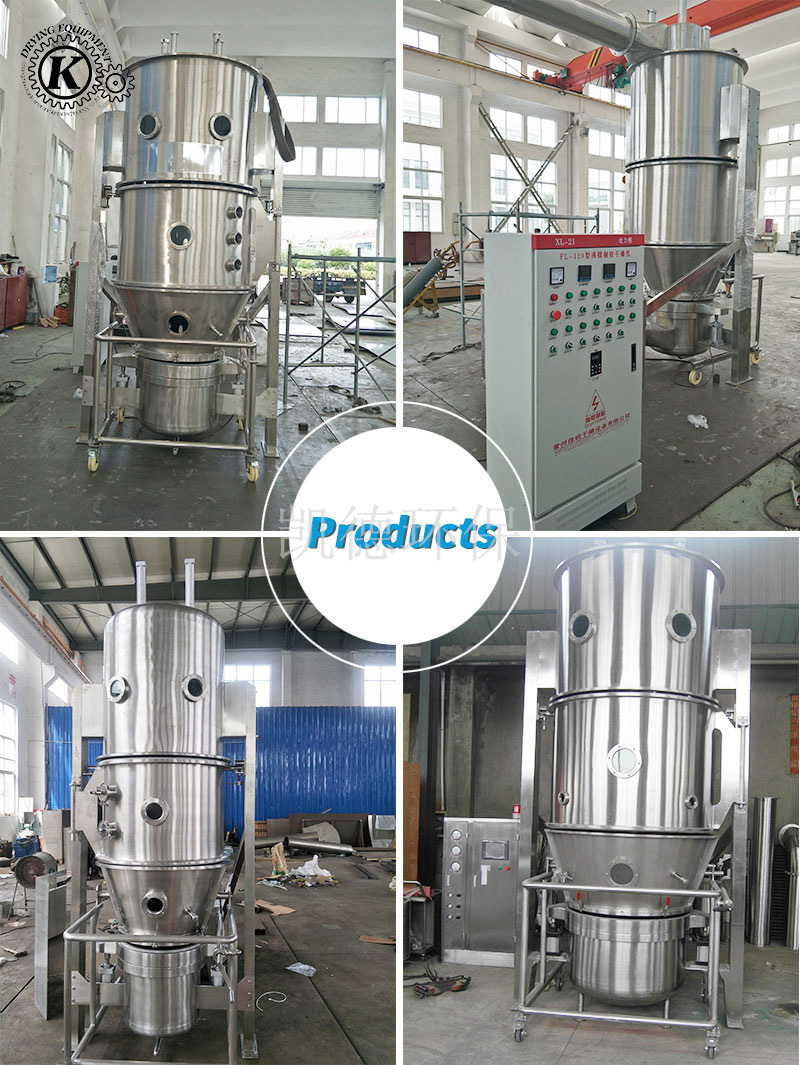

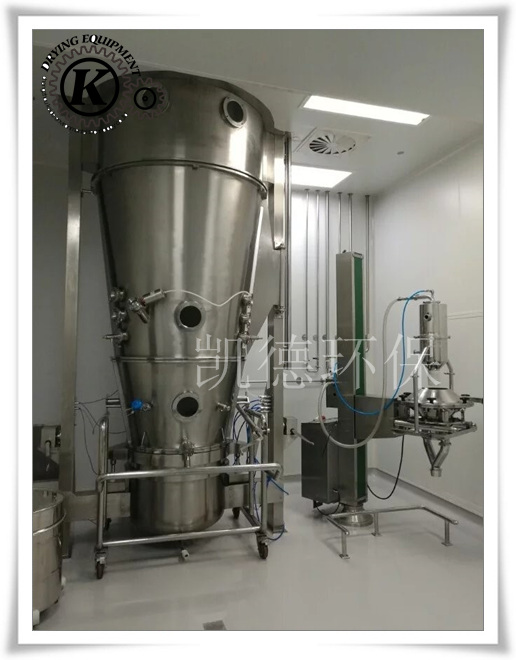

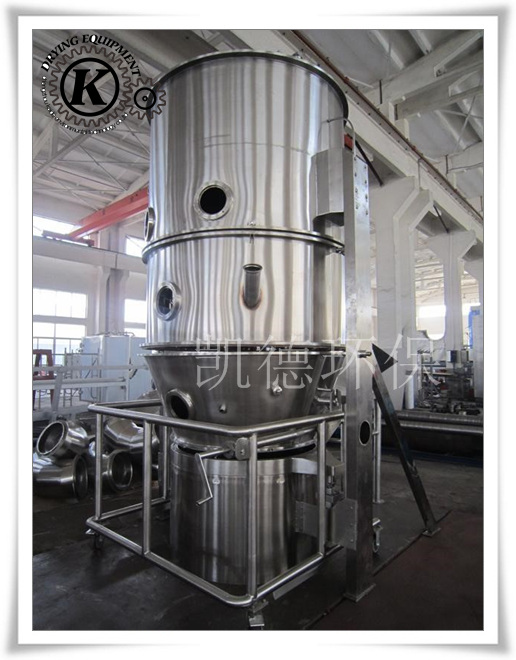

FG type Boiling Dryer (Vertical)
This machine is mainly used for medicine, food, chemical and other industries powder or dry granular materials.
Features:
1、fluidized drying, fast mass transfer;
2、the negative pressure in the closed state of operation, no dust;
3、mining antistatic filter material, safe operation;

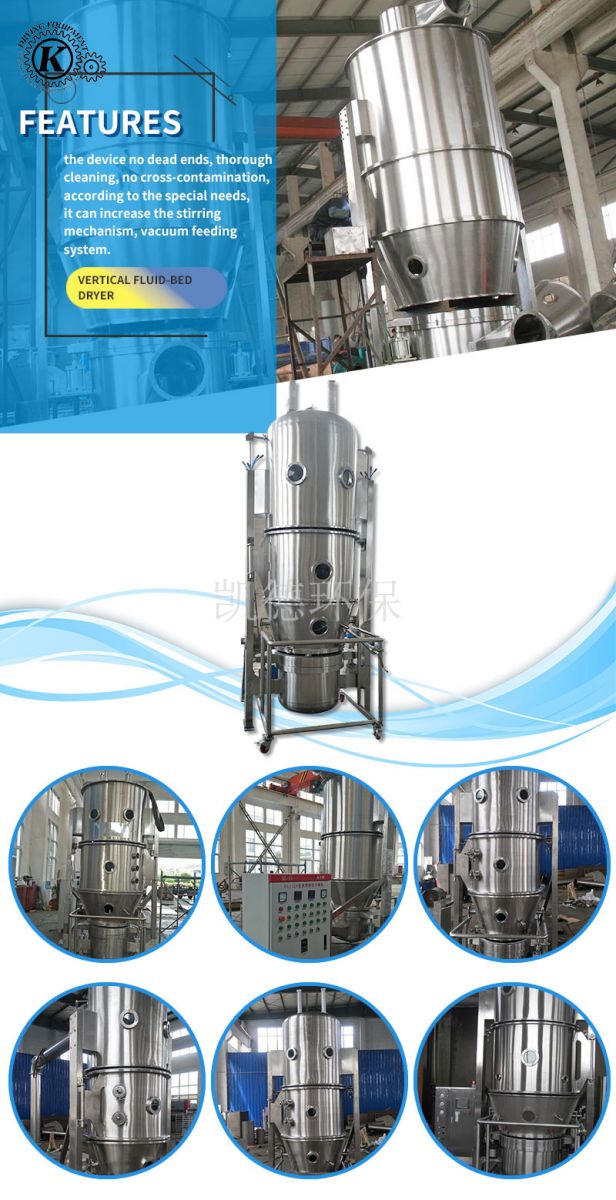

4、the device no dead ends, thorough cleaning, no cross-contamination, according to the special needs, it can increase the stirring mechanism, vacuum feeding system.
5、compared with the GFG, there is a greater flow of space.
Technical Parameters:
| project | Unit | Type | ||||||||
| 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| Material container | diameter | mm | 300 | 00 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Volume | L | 12 | 22 | 100 | 220 | 20 | 670 | 1000 | 1500 | |
| Production capacity | Least | kg/batch | 1.5 | 15 | 30 | 80 | 100 | 150 | 250 | |
| maximum | kg/batch | 6 | 36 | 72 | 140 | 240 | 360 | 600 | ||
| Steam consumption | kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 600 | |
| Amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 1.1 | 1.6 | |
| Fan power | kw | 2.2 | 2.2 | 5.5 | 11 | 18.5 | 22 | 30 | 5 | |
| temperature | ℃ | |||||||||
| Material Yield | % | ＞99 | ||||||||
| Final moisture content | % | ～0.2 | ||||||||
| Noise | dB(A) | ≤75 | ||||||||
| Host height | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 000 | 400 | |
