Application
Fluidized bed divider plate special ring made of sheet structure, each form a laminated sheet form, so that the air flow from the blade through the gap, forming a high-speed air circulation like, so that the material turbojet regular exercise, by installing side pneumatic nozzle wall adhesive or coating liquid sprayed into the layer of material flow rules, whereby the powder or granulated to obtain a continuous uniform film coating.
Typical applications: Widely used in wire and powder system powder, granules, pellets, enteric, slow release film coatings and other coatings
Lysine granulation, granulation coating mold phytic acid, neomycin guitar enteric coating, herbicides granulation, granulation medicine extract, citric acid isolation coating, etc.
Features
※Special air distribution plate structure, forming materials regular motion, while addressing the problem of channeling and dead
※The resulting particles are porous, instant, and have a certain strength, high density, unbreakable
※Moisture absorption and poor flowability of the material particles can also be made eligible
Technical Specifications
Project / Specifications | type | |||||||||||
name | Unit | 3 | 5 | 10 | 15 | 30 | 60 | 90 | 120 | 200 | 300 | 500 |
投料量 | Kg/批 | 3 | 5 | 10 | 15 | 30 | 60 | 90 | 120 | 200 | 300 | 500 |
Fan power | Kw | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 55 |
Amount of compressed air | m3/min | 0.25 | 0.35 | 0.55 | 0.6 | 0.85 | 1.1 | 1.1 | 1.3 | 1.8 | 2.4 | 3 |
Steam consumption | Kg/h | 36 | 40 | 50 | 70 | 95 | 145 | 165 | 180 | 340 | 380 | 450 |

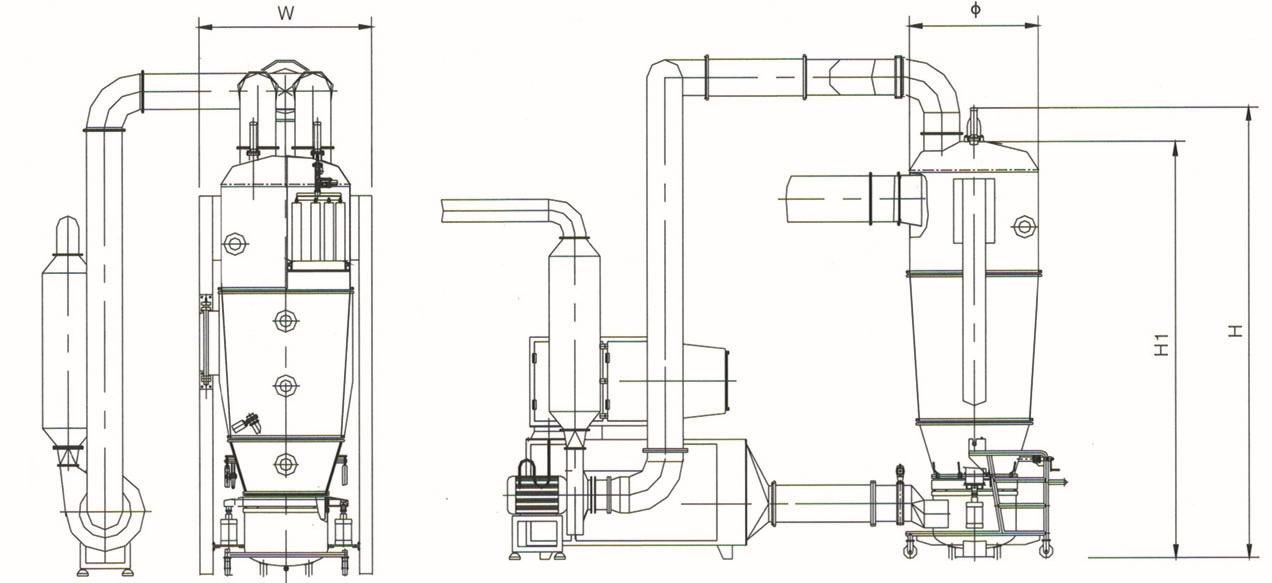

Host size | H1 | 1950 | 2260 | 2400 | 2500 | 2500 | 3050 | 3050 | 3050 | 3450 | 3650 | 4000 |
H2 | 250 | 250 | 250 | 320 | 340 | 490 | 540 | 590 | 680 | 790 | 890 | |
H3 | 1750 | 2030 | 2100 | 2200 | 2200 | 2750 | 2750 | 2750 | 3150 | 3350 | 3700 | |
Φ1 | 400 | 550 | 550 | 650 | 700 | 1000 | 1100 | 1200 | 1400 | 1600 | 1800 | |
Φ2 | 150 | 180 | 180 | 250 | 250 | 280 | 280 | 280 | 280 | 315 | 355 | |
B1 | 660 | 1050 | 1010 | 1110 | 1160 | 1460 | 1560 | 1660 | 1860 | 2030 | 2260 | |
B2 | 1200 | 1650 | 1560 | 1760 | 1830 | 2460 | 2660 | 2860 | 3260 | 3660 | 4060 | |
B3 | 880 | 950 | 1100 | 1100 | 1250 | 1530 | 1530 | 1650 | 1650 | 1750 | 1850 |
