Overview:
The mixing drum machine multi-directional movement, no material centrifugal force, and no gravity segregation, lamination and accumulation phenomenon of the components may have a specific weight ratio of the above mixing rate of 99.9%, is the ideal product in various mixers.
Cartridge loading rate is high, up to 90% (40% only a conventional mixer), high efficiency, short mixing time.
An arc over the entire barrel, finely polished.
Three-dimensional motion mixer for powdered pharmaceutical, chemical, food, light industry, electronics, machinery, mining, defense industry and various research institutes, high uniformity of granular materials mixing.
Features:

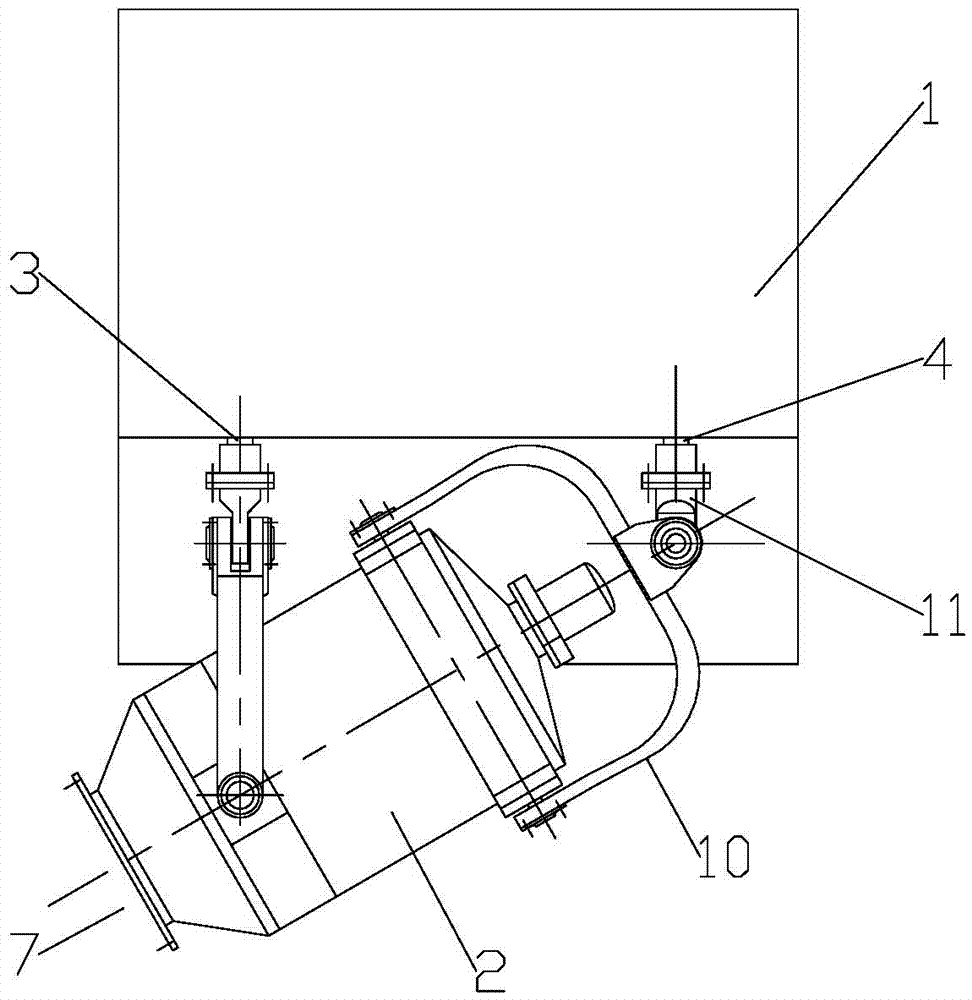

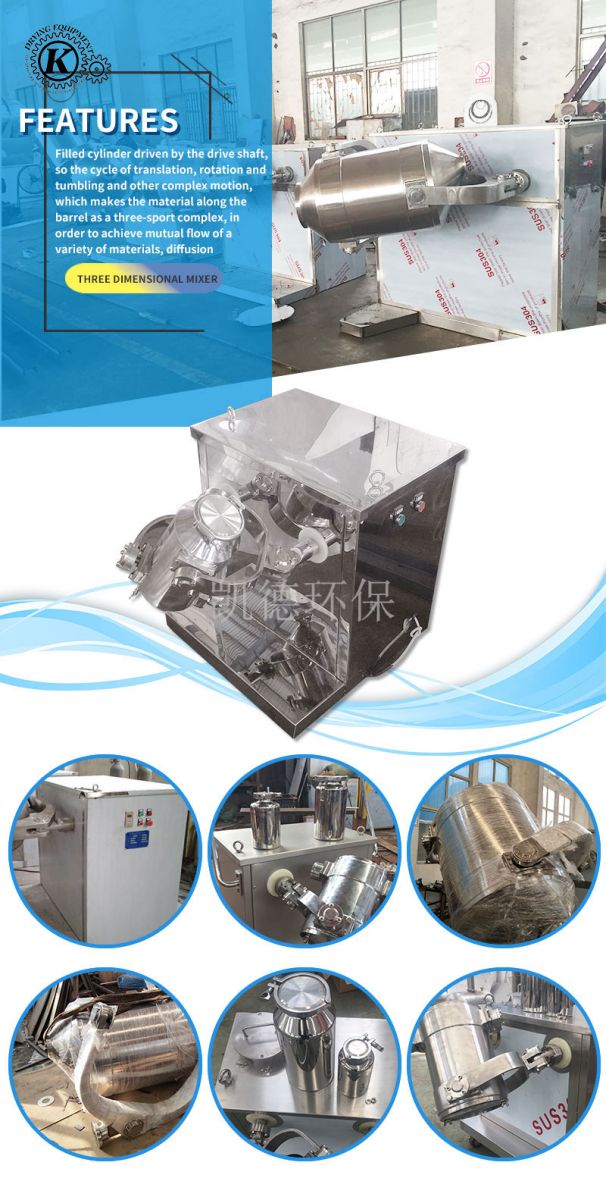

Filled cylinder driven by the drive shaft, so the cycle of translation, rotation and tumbling and other complex motion, which makes the material along the barrel as a three-sport complex, in order to achieve mutual flow of a variety of materials, diffusion, accumulation, doped miscellaneous, in order to achieve uniform mixing purposes, avoiding the proportion of general mixer materials due to the centrifugal force generated by the phenomenon of segregation and accumulation.
Technical Parameters:
model | SYH-1 | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1500 |
Cartridge volume(L) | 1 | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 |
The maximum loading volume(L) | 0.9 | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 600 | 750 | 1200 |
Maximum charge weight(kg) | 0.5-0.9 | 2.4-4.5 | 7.4-13.5 | 25-45 | 50-90 | 100-180 | 200-360 | 300-540 | 400 | 500 | 750 |
Spindle speed | 30 | 25 | 25 | 25 | 20 | 20 | 15 | 15 | 10 | 10 | 10 |
Motor Power(kw) | 0.12 | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.2 | 11 | 11 |
size(mm) | 500× 600 ×600 |
600× 1000 ×1000 |
800× 1200 ×1000 |
1150× 1400 ×1300 |
1250× 1800 ×1550 |
1450× 2000 ×1550 |
1650× 2200 ×1550 |
1850× 2500 ×1750 |
1900× 2400 ×2100 |
1950× 2500 ×2400 |
2600× 2500 ×2350 |
weight(kg) | 50 | 50 | 200 | 300 | 800 | 800 | 1200 | 1200 | 1650 | 1800 | 2500 |
