Application:
Universal grinder suitable for pharmaceutical, chemicals, pesticides, food and food industries. Extremely versatile.
The relative motion of the machine use activities and fixed gear tooth plate interrogations. So that was crushed by the teeth; the combined effect of the strike, the friction between the material and the shock was crushed. The machine structure is simple, sturdy, running balance, good crushing effect, to be ground can be discharged directly from the grinding chamber. Particle size by replacing different aperture sieve to obtain. Also 30B type is stainless steel. All the inner wall of the housing is machined to achieve smooth surface, making medicines, food, chemical and other production more in line with national standards. Reached the GMP requirements.
Principle:

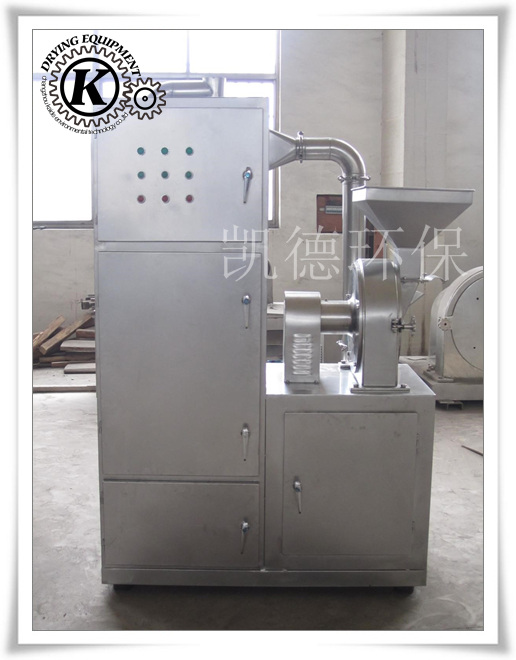

The group consists of pulverizer grinder, ESC materials collection boxes and ESC vacuum cleaner. Solve the material in the process of crushing dust flying.
The principle of work is material into the crushing chamber, high-speed rotation of activities between fixed gear tooth plate and the plate by tooth; mutual knock-on effect of the strike, shear, friction and material to be crushed between. Through sieving. The needed powder.
The grinder, material collection box and vacuum cleaner. All made of stainless steel. GMP requirements; compliance with pharmaceutical production & rdquo.
Technical Parameters:
model | unit | 20B/20Bunit | 30B/30Bunit | 40B/40Bunit | 60B/60Bunit |
Production capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
Spindle speed | r/min | 4500 | 3800 | 3400 | 2800 |
Feed size | mm | 6 | 10 | 12 | 15 |
Grinding fineness | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
Crushed motor power | kw | 4 | 5.5 | 11 | 15 |
Suction fan | kw | 1.5 | 1.5 | 1.5 | 2.2 |
Dimensions(L×W×H) | mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
Dimensions (unit) (L×W×H) | mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1 700 | 1550×1 000×1750 |
