Feature

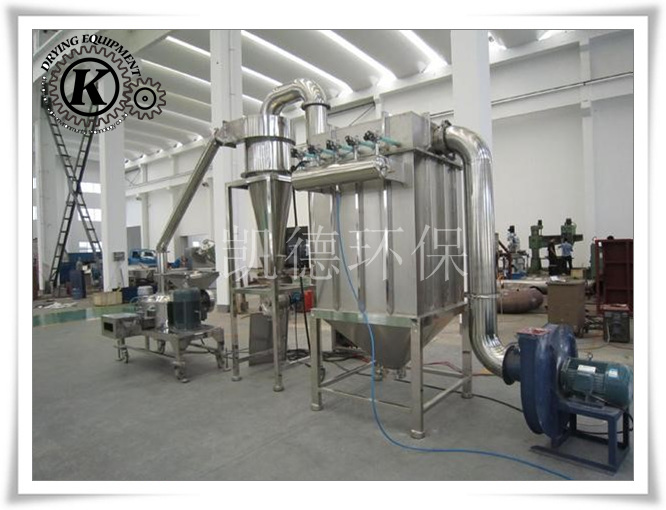

The two ranges micro-mill grinder and Advanced Micro Devices, the host, auxiliary equipment, electronic control of three parts, compact design, reasonable structure, winnowing, non-sieve or screen. Machine built with hierarchical structure, enables crushing and grading complete negative pressure to transport the heat generated by the operation of crushing cavity can discharge a steady stream, so it is suitable for crushing thermal sensitive raw materials native to adapt to a wide range of continuous production process, the particle size can be adjusted..; capable of handling such as: crushing and classification of chemical products, food, medicines, cosmetics, dyes, resins, shell materials and other materials.
Technical Parameters
Specifications Model | WFJ-15 | WFJ-18 | WFJ-36 | WFJ-60 |
Production capacity(kg/h) | 10-200 | 20-450 | 60-1000 | 1000-1500 |
Feed particle size(mm) | <10 | <12 | <15 | <18 |
The particle size(mesh) | 80-320 | 80-450 | 80-450 | 80-450 |
Total power(kw) | 13.7 | 19.07 | 38.85 | 65.2 |
Master Speed(rpm) | 4500 | 4480 | 4000 | 4000 |
Dimensions(L×W×H)(mm) | 5410×1660×2500 | 5500×1800×3100 | 9000×2200×4000 | 9000×2700×5280 |
Specifications Model | CWFJ-15 | CWFJ-18 | CWFJ-36 | CWFJ-60 |
Production capacity(kg/h) | 10-200 | 20-450 | 60-1000 | 100-1500 |
Feed particle size(mm) | <10 | <12 | <15 | <18 |
The particle size(mesh) | 120-1400 | 120-1400 | 120-1400 | 120-1400 |
Total power(kw) | 18.67 | 31.7 | 46 | 76.7 |
Dimensions(L×W×H)(mm) | 5510×2130×3115 | 5800×2500×3500 | 9000×2800×4000 | 9000×3000×5280 |
