Application:

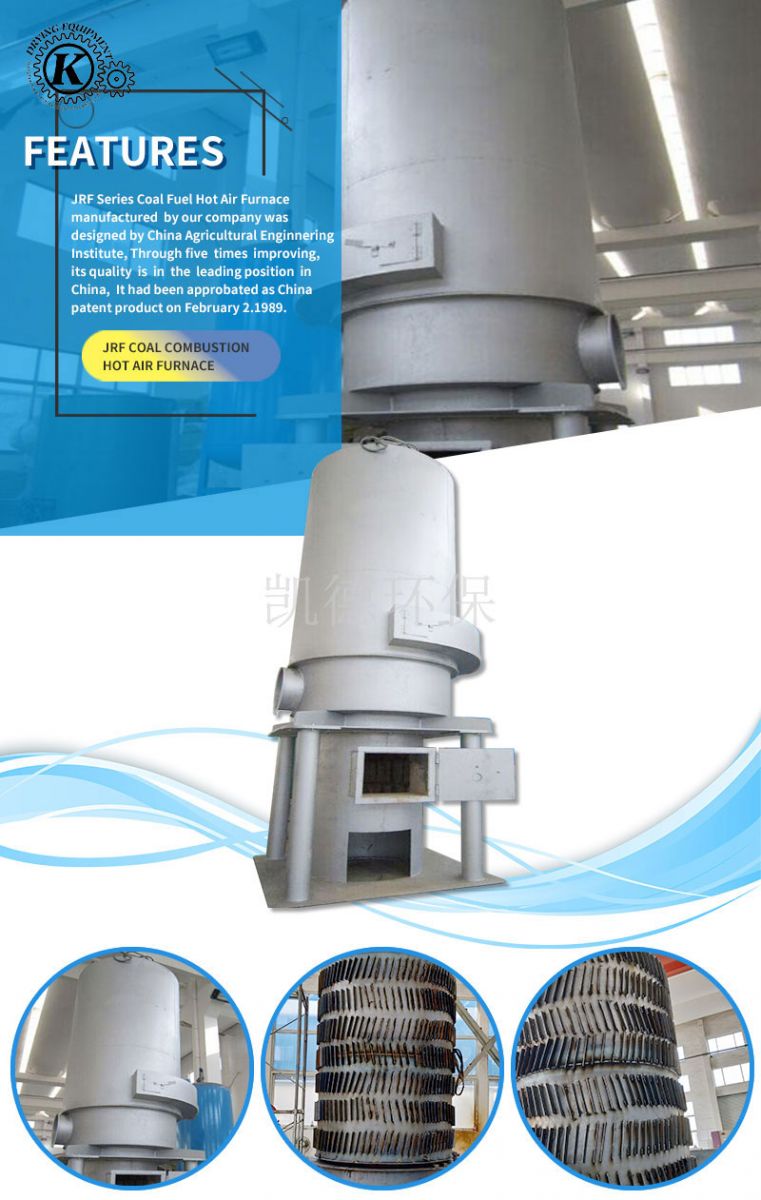

The furnace is the versatile hot air equipment, drying equipment for use with a variety of materials. Widely used in food, seed, feed, fruits, dehydrated vegetables, mushrooms, edible fungus, white fungus, tea, tobacco and other agricultural products, food, pharmaceuticals, chemicals, light and heavy industrial products, heating and dehumidification, heating can be used for a variety of facilities and Treasury dehumidification.
| Model/form | Heat output (x104kcal/h) |
Output of wind (m3/h) |
Hot air temperature (°C) |
Coal consumption (kg/h) |
Flue draft fan model |
| JRF4-2.5 | 2.5-3 | 560-1500 | 60-200 | 10-12 | Cooking Blower |
| JRF4-4 | 4-5 | 930-3500 | 60-200 | 14-17 | Cooking Blower200-300W |
| JRF4-8 | 6-8 | 1480-5600 | 60-200 | 18-24 | Y5-47 2.8C |
| JRF5-15 | 10-15 | 2160-12000 | 60-300 | 30-45 | Y5-47 4C 2000r/min 1.5kW |
| JRF5-30 | 25-30 | 4330-25000 | 60-300 | 70-85 | Y5-47 5C 2520r/min 2.2kW |
| JRF5-60 | 55-60 | 8660-45000 | 60-300 | 150-175 | Y5-47 6C 2900r/min 3kW |
| JRF6-100 | 80-100 | 14000-84000 | 60-300 | 220-290 | Y9-26 9D左(left) 45° 1450r/min 18.5kW |
| JRF6-160 | 150-160 | 23000-134400 | 60-300 | 410-460 | Y9-26 9D 左(left)45° 1450r/min 18.5kW |
Note:
1. Ambient temperature reference standard by 18 & plusmn; 2 & deg; calorific value C, coal calculations to 5500kcal / kg.
2.Table hot air temperature is determined by the output of wind. Stove JRF4 type hot air temperatures up to 200 & deg; C or more, JRF5, JRF6 hot air temperatures up to 300 & deg; C or more (special manufacturing up to 500 & deg; C or more), you make adjustments as needed.
3.Stove smoke configuration window height: JRF 4 type 3-5 meters, JRF5, JRF6 type of 5-8 meters.
4.The inside wall of the lower furnace of fire-resistant layer to the grate at the starting point, its height: JRF4-4 type 0.5 meters, can be on-site installation.
5.JRF6 type of chain grate combustion device
